Water Use in Holyoke

Water need in Holyoke has always been very high. It is an industrial city and thus not only the population but also the mills need lots of water. The mills make fibers and paper both of which are combustible and thus the mills of Holyoke have the highest mill fire protection in the country during the city’s industrial era.

Water need was so great in Holyoke that the water board would often looked into other sources far from Holyoke. For example, there was talk of building an aqueduct across the Connecticut River from South Hadley to Holyoke in order to pipe Quabbin water into the city. One proposal was to build a bridge from South Hadley to Holyoke from the Batchelor Brook to the Smiths Ferry neighborhood.

Specifically, in the summer of 1894, the water level in the Whiting Street Reservoir was only 9 feet and the other reservoirs were low too. There was a discussion of placing a pump and pipe system into the Connecticut River and pumping more water into the Whiting Street Reservoir. Clearly, such a conversation included diseases such as typhoid being sent into the reservoir in this way.

There was often much talk about connecting a pipeline from Chicopee into Holyoke and from West Springfield into Holyoke. These were actually built compared to the other schemes. From 1942 to 1943 the line to West Springfield was completed to their pipes. In 1957 West Springfield started selling some water to Holyoke but I do not know how long and to what extent that arrangement lasted. The Chicopee water line was laid on the north side sidewalk of the Willimansett Bridge. (some of that work was done in 1942)

Over many years also there was the examination of whether or not Holyoke should install water gauges in homes. In 1907, test meters were put into over a hundred homes to ascertain water usage and benefits of meters. Would the cost of the meters be worth it?

At some point Holyoke purchased two large private wells in the Rock Valley neighborhood. The Coronet Well from 1966 is 36 feet deep and has a capacity of 120 gallons per minute. The Pequot Well from 1983 is 83 feet deep and has a capacity of 300 gallons per minute.

The Holyoke Water Works has an independent budget from the City of Holyoke with the only restriction being that it cannot make a profit. The history of water use is well explained in the annual city reports of Holyoke. I will give a few examples below.

In 1894, there were 57 miles of pipes, 474 gates (leaving 800 feet between gates), 650 hydrants, and 200 meter gauges.

In 1912, 1 MG per year are used by the mills of Holyoke. In that same year 6 MG per year are used by the homes of Holyoke.

In 1920, there are 97 miles of mains. In the city there are 785 hydrants. Usage numbers show that the most water is used in August and the least in December.

In 1931, there were 120 miles of cast iron pipe mains. There were 1,705 Chapman gates to control the water in these pipes. There were 851 public hydrants and 296 private hydrants. 2.706 billon gallons of water was used. That is 132 gallons daily per capita.

For example, in 1950 there was 131 miles of main pipes. 3 billion gallons of water was used annually in the city or in other terms that is 8 million gallons daily. Per capita that is 158 gallons. Consumption in the LSD (low service district) is 2.506 billion gallons of water – 2.153 from Ashley and 0.353 from Whiting Street. Consumption in the HSD (high service district) is 0.664 billion gallons of water all from McLean. Five years earlier in 1945, Ashley had 2.338 billion gallons, Whiting Street 0.412, and McLean 0.717. The variation from year to year is due to population changes and droughts.

In 1957, 3,146 million gallons of water was used in Holyoke. 31 MG from the West Springfield pipeline and 49 MG from the Chicopee pipeline. West Heights used 39 MG. Wyckoff Park District used 7 MG. There were now 142.9 miles of main in Holyoke.

Fire hydrants are very important to Holyoke since there are so many mills and so many tenement houses. Some of the brands of hydrants are Mathews, Pattee, Perkins, and Holyoke. The Holyoke Water Works bought out the Holyoke Hydrant and Iron Works Company (on Commercial Street) in 1896. This firm had been around since at least 1885. LINK

Specialty equipment was also important to the water works. For example, in 1904 a 16 inch Premium Venturi was installed at the reservoir. In 1918 a Cole Recording Pitometer was purchased. This used a pitot tube and a static tube to measure the water pressure. In 1951 a portable chlorinator was purchased and used in several of the reservoirs.

The booklet Souvenir by the Holyoke Water Works made in 1904 gives nice images. In that same year a booklet called Holyoke Water Supply was written by French.

namelocationsystembeginsendsvolume (millions of gallons)
Downtown VatDowntownvat185018733
WrightAshleymasonry dam1873still
Wright’s Cutoff 1Ashleydike1897still
Wright’s Cutoff 2Ashleydike1897still
Wright’s Cutoff 3Ashleydike1897still
Ashley ReservoirAshleymasonry dam1875still795

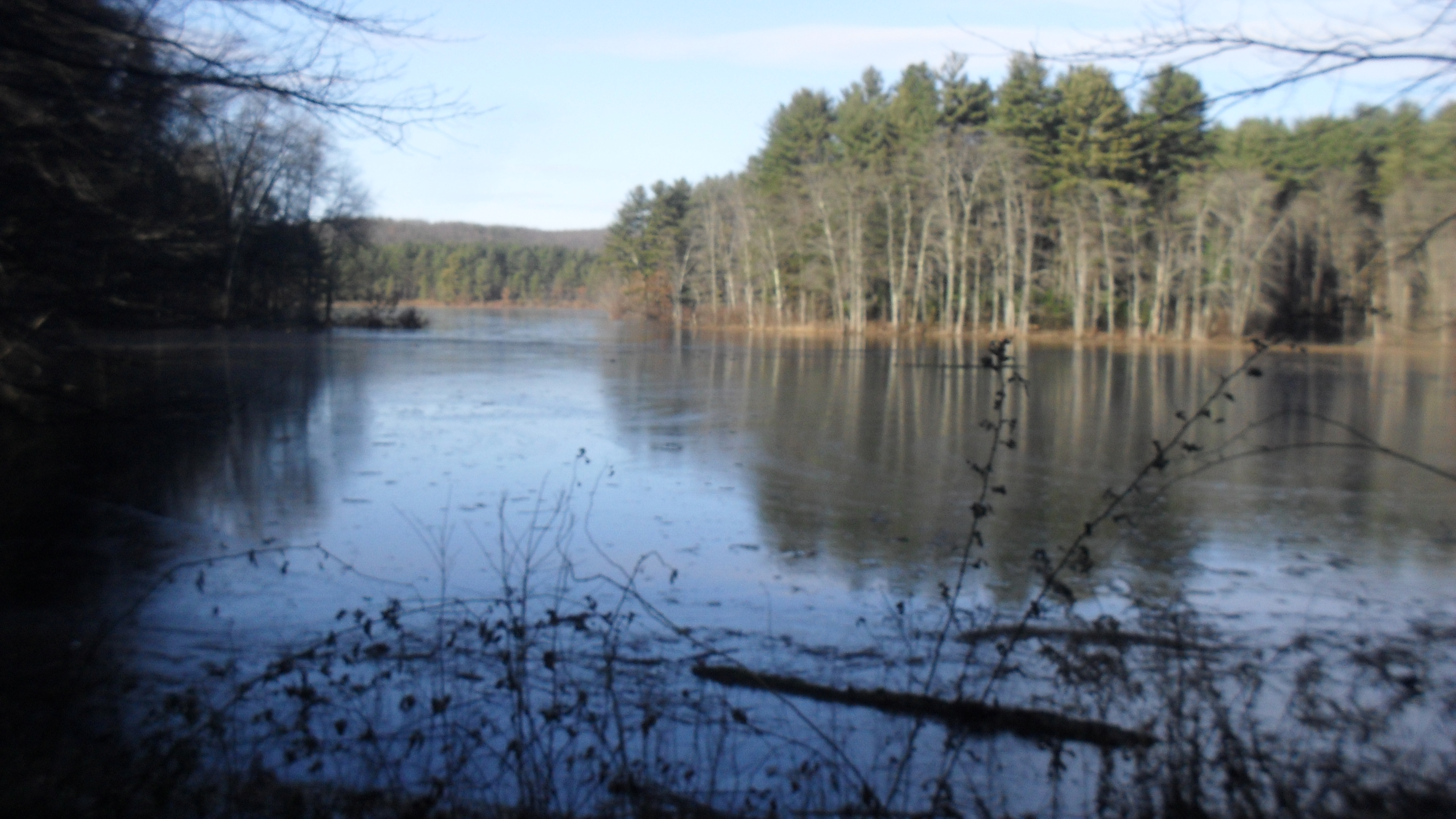

Ashley’s CutoffAshleydike1897still
Clear (Bray)Ashleyearth and rubble dam1880still
North RailroadAshleydike1897still
McLean ReservoirAshleymasonry and earth dam1903still365
Fomer Reservoir (Carmody)Southamptondam18971957
White ReservoirSouthampton and Westhamptonmasonry dam19131982650
New Intake ReservoirSouthamptonmasonry dam1917still0.6
Tighe-Carmody Reservoir (Manhan)Southamptonmasonry dam1957still5500
Whiting Street ReservoirSmith’s Ferrymasonry dam1889still496
IntakeWhiting Streetmasonry dam18841963
Loomis (Summit)Whiting Streetdam

Dimensions of the Reservoirs

thanks to the Holyoke Water Works for this map of pipelines

map from the Holyoke Transcript

Other Reservoirs in Holyoke

Holyoke Reservoir System after the 1955 Hurricane

fun facts:

  • water rates in Holyoke were the lowest found in any city in the United States
  • the New England Water Works Association was held in Holyoke in 1904 with 200 guests
  • Holyoke Water Works Auxiliaries (a branch of the Holyoke Civilian Defense and a branch of the Massachusetts Commission on Public Safety) were  a group of 90 men that would be ready in a war emergency to help the city.  There were 8 stations within the city for them with squads assigned to each one.  These plumbers and steamfitters had weekly rehearsals at their stations.
  • in 1939 one third of all the water used in the high service district was to put out fires at the dumps
  • 1911 water use is below

standpipes in Holyoke:

In 1931 a 100 thousand gallon water storage tank was built off of Jarvis Avenue.

This image has an empty alt attribute; its file name is tatters_0004-1024x283.jpg
thanks to the Holyoke Water Works for the image above

Superintendents of the Reservoir System of Holyoke:

Patrick Gear 1913 to 1938

This image has an empty alt attribute; its file name is papers_0001-490x1024.jpg

Holyoke Water Works

Sanborn map analysis

Sanborn 1895 map – not found

Sanborn 1915 map

Sanborn 1949 map

Sanborn 1956 map
